Household Gas Cooker that have knob to turn on, turn off gas must used with Low Pressure Regulator which may have safety button or guage or timer. For general Low Pressure Regulator is looks like UFO (Flat and round).
Low Pressure Regulator that used with knob type household gas cooker
High Pressure Gas Cooker that generally used in restaurant must use with High Pressure Regulator which may have safety button or guage. For general High Pressure Regulator is looks like mountain (tall).
Regulator that used with High Pressure Gas Cooker

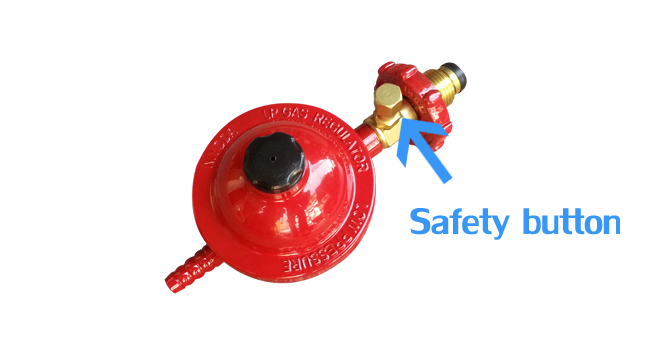

if gas leak , safety gas regulator will automatically cut off gas.
How to use: turn on gas valve then press safety button of gas regulator
How to turn off gas: turn off gas valve
1. Low pressure automatic gas cooker or High pressure gas cooker
2. Gas cylinder
3. Gas regulator (if it is Low pressure automatic gas cooker, use low pressure regulator, but if it is high pressure gas cooker, use high pressure regulator)
4. Gas hose (generaly 1.5m. - 2 m., if gas cooker is not far from gas cylinder)
In the picture, it is low pressure automatic gas cooker , use low pressure regulator
1. Hi pressure gas cooker or cast iron burner (best seller is KB5 burner)
2. Cast iron burner stand (Tall or short), In the picture is short stand
3. Gas cylinder
4. High pressure regulator
5. Gas hose (generaly 1.5m. - 2 m., if gas cooker is not far from gas cylinder)
6. Gas igniter
Low pressure regulator is used with gas rice cooker.
The opening should be at least 72 cm high because a 15-kg PTT tank or a Worldgas tank is 66 cm tall. The extra 6 centimeters is needed to "tilt" the tank into place. The width of the opening should be 40 cm. The depth of the opening should be 40cm. This is to accommodate the tank which is 34 cm in diameter. That leaves a clearance of 3 cm on either side and behind
If you want to place other gas tank size, you can estimate the opening tall by gas tank tall + 6 cm. at least.
LPG gas tank tall table
|Gas Tank (POL)||Tall (cm.)|
|15 Kg. PTT , 15 Kg. Worldgas||66|
|13.5 Kg. Worldgas||60|
|11.5 Kg. Unique gas||58|
|7 Kg. PTT||50|
